Šifra proizvoda: HLAY5EJ45

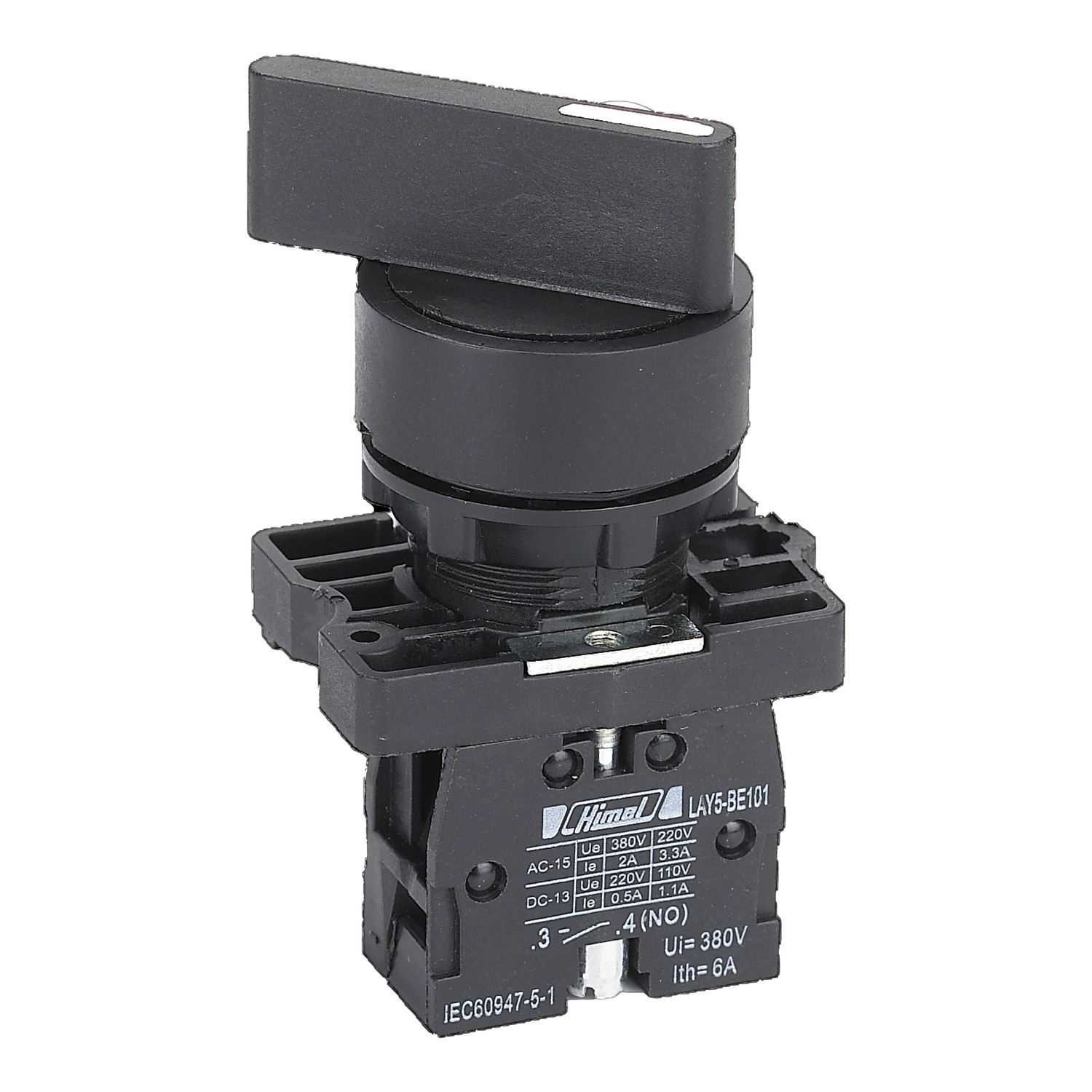

Naziv: Prekidač fi22 sa povratkom 1-2 1NO 1NC HLAY5-EJ45 HIMEL
Range of product:HLAY5
Device presentation:Complete product
Product or component type:Selector switch
Bezel material:Plastic
Mounting diameter:22 mm
Head type:Standard
Fixing collar material:Plastic
Cap/operator or lens colour:Black
Shape of signaling unit head:Round
Type of operator:Spring return
Operator profile:Black long handle
Operator position information:2 positions 45°
Contacts type and composition:1 NO + 1 NC
Contact operation:Slow-break
Contacts usage:Standard contacts
Mechanical durability:100000 cycles
Connections - terminals:Screw clamp terminals
[Ith] conventional free air thermal current:6 A
[Uimp] rated impulse withstand voltage:6 kV
[Ie] rated operational current:2 A at 380 V 3.3 A at 220 V
Electrical durability:50000 cycles
E-commerce address:Hlay5-selector-switches-with-handle
Na lageru: 80 kom
Jedinica mere: kom
->
