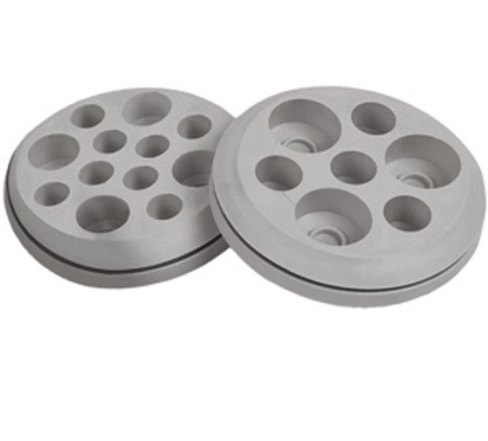

Pojedinačni uvodnici MGD (IP54) Morek
MGD single bushings are designed for routing multiple cables or pipes through a single hole.
Uvodnici koji odgovaraju
standardnom M50 otvoru.
Uvodnici Morek PG navoj IP68 halogen free
Plastic cable glands Technical specification Material • Nut and gland body: polyamide PA6 V2 • Sealing ring: TPV Features • Connection thread: metric (EN 60423) / PG (DIN 40430) • Degree of protection: IP68 up to 5 bar (with O-ring) • Temperature range of use: -20 °C +100 °C; -30 °C +150 °C (short-
Uvodnici Morek metrički navoj IP68 halogen free
Plastic cable glands Technical specification Material • Nut and gland body: polyamide PA6 V2 • Sealing ring: TPV Features • Connection thread: metric (EN 60423) / PG (DIN 40430) • Degree of protection: IP68 up to 5 bar (with O-ring) • Temperature range of use: -20 °C +100 °C; -30 °C +150 °C (short-
Kablovske uvodnice sa spiralom PG navoj IP68 Morek
Plastic cable glands, spiral Technical specification Material • Nut and gland body: polyamide PA6 V2 • Sealing ring: special TPV seal with bending resistance Features • Connection thread: metric (EN 60423) / PG (DIN 40430) • Degree of protection: IP68 up to 5 bar (with O-ring) • Temperature range o
Kablovske uvodnice sa spiralom metrički navoj IP68 Morek
Plastic cable glands, spiral Technical specification Material • Nut and gland body: polyamide PA6 V2 • Sealing ring: special TPV seal with bending resistance Features • Connection thread: metric (EN 60423) / PG (DIN 40430) • Degree of protection: IP68 up to 5 bar (with O-ring) • Temperature range o
Pojedinačni uvodnici T-VET PG (IP67) Morek
T-VET cable glands are designed for the passage of low voltage cables, as well as various types of pipes. They are suitable for indoor and outdoor use. They are suitable for use with openings made in the PG size range. The T-VET model is a new design with a double seal, in which the upper part of th
Pojedinačni uvodnik T-GET M (IP67) Morek
T-GET cable glands are designed for the passage of low voltage cables, as well as various types of pipes. The glands are suitable for indoor and outdoor use. These glands are suitable for use with holes made in the metric dimension scale (mm). The T-GET model is a new design with a double seal, in w
Pojedinačni uvodnik T-GD (IP54) PG Morek
T-GD and T-GDM cable glands are designed for the passage of low voltage cables, as well as various types of pipes. The glands are suitable for indoor and outdoor use. T-GD glands are suitable for use with openings made in the PG size range and T-GDM glands are suitable for use with openings made in
Pojedinačni uvodnik T-GDM (IP54) M Morek
T-GD and T-GDM cable glands are designed for the passage of low voltage cables, as well as various types of pipes. The glands are suitable for indoor and outdoor use. T-GD glands are suitable for use with openings made in the PG size range and T-GDM glands are suitable for use with openings made in
Pojedinačni uvodnik M 20-80 Morek
Cable glands M 20–80 are designed for the passage of low voltage cables, but also various types of pipes. This gland is an excellent solution for cables of larger sizes, up to a diameter of 80 mm. The glands are suitable for indoor and outdoor use. Technical specifications • Made of TPE material •
Kablovski uvodnici T-RGDM (IP64) Morek
T-RGDM grommets are offered in three basic designs and are designed for different cabinet wall thicknesses in the range of 1 to 3.5 mm • For the use of various cable and wire sizes in low voltage applications • Suitable for indoor and outdoor use Advantages • Each grommet has spacer rings with handl
Kablovski uvodnici SCG, MC (IP55) Morek
Split entry plates are intended primarily for the passage of already installed cables. The design of the entries allows installation on an already installed cable, so it is not necessary to manipulate the cable on which the entry is threaded, or to pull the cable through the entry. This makes them v
Metalni uvodnici i navrtke PG navoj IP68 Morek
Metal lock nuts (nickel-plated brass) Technical specifications Material • Lock nut: nickel-plated brass • Connection thread: metric (EN 60423) / PG (DIN 40430) • Temperature range of use: -60 °C +200 °C Features • For tightening cable glands
Metalni uvodnici napravljeni od mesinga, presvučeni niklo
Metalni uvodnici i navrtke specijalne veličine Morek
Metal cable glands (nickel-plated brass), special sizes Technical specification Material • Nut and gland body: nickel-plated brass • Sealing ring: EPDM • O-ring: NBR - TPV Features • Connection thread: metric (EN60423) • Degree of protection: IP68 • Temperature range of use: -20 °C +100 °C; -40 °C
MGD single bushings are designed for routing multiple cables or pipes through a single hole.
Materijal TPE, bez halogena
Način montaže M50
Širina artikla (mm) 51
Dužina (mm) 57
Visina (mm) 11
Težina artikla (g) 19,8
Prečnik rupe (mm) 48
Prečnik kabla (mm) 8 x 1 mm - 9 mm / 4 x 1 mm - 13 mm
Debljina ploče (mm) 1 mm - 2 mm
IP54
->
