Šifra proizvoda: HDR3S252P5

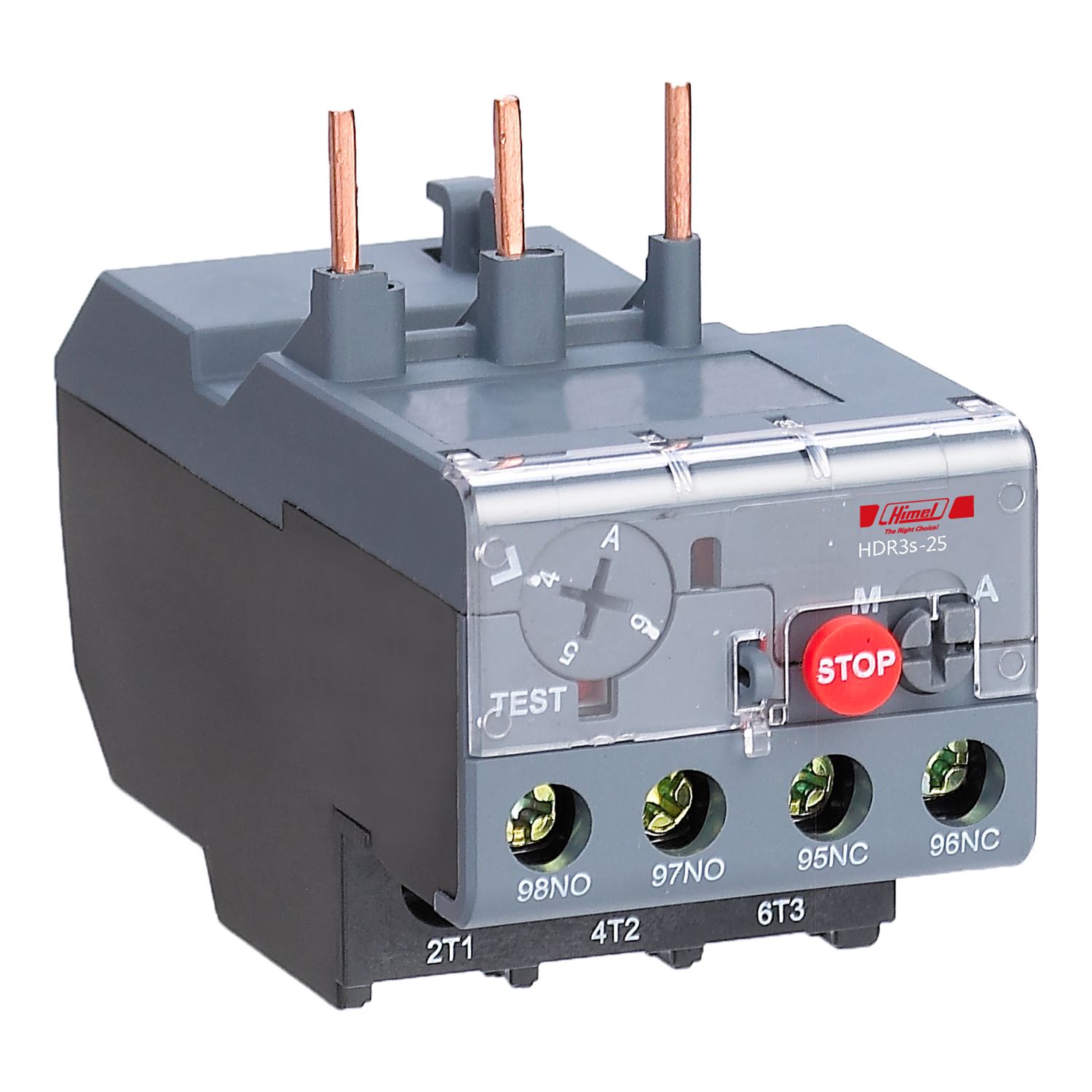

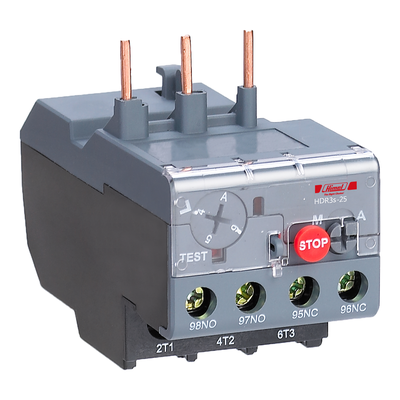

Naziv: Bimetalna zaštita 1,6-2,5A HDR3s-25 Himel
Range of product:HDR3s
Product or component type:Thermal overload relay
Device application:Motor protection
Thermal protection adjustment range:1.6…2.5 A
Frame size:25A
Protection type:Overload Phase failure
Reset:Automatic reset Manual reset
Control type:Test button Stop button
[Ith] conventional free air thermal current:5 A
Local signalling:Trip indicator
[Ie] rated operational current:1.57 A at 230 V AC-15 0.9 A at 400 V AC-15 0.14 A at 230 V DC-13
[Ui] rated insulation voltage:660 V
[Uimp] rated impulse withstand voltage:6 kV
Utilisation category:AC-15 DC-13
Poles description:3P
Height:67 mm
Width:45 mm
Depth:95 mm
Installation category:III
Pollution degree:3
Ambient air temperature for operation:-5…40 °C
Ambient air temperature for storage:-25…55 °C
Operating altitude:2000 m
Standards:IEC 60947-4-1
Product certifications:CB CE SEMKO
Na lageru: 73 kom
Jedinica mere: kom
